Tata Genset CPCB IV +

Tata Genset CPCB IV +

WORLD CLASS CPCB 4+ GENSETS MADE IN INDIA FOR THE WORLD

Tata Genset CPCB IV +
Tata Genset CPCB IV + Tata Genset CPCB IV +


Salient Features

Built For High Temperature

All The Silent Generators of Rishabh Are Designed to withstand the ambient tem- perature of 45 degree Celsius, though the radiators used are able to withstand ambient temperature of 50 degree Celsius.

Legacy

TATA Motors Gensets are the most trusted engines as there is no change in the basic engine. These engines carry the legacy of our iconic commercial vehicles TATA 407, 709, 1613 & are sturdy as they are designed to run at 5000rpm.

Lowest Fuel Consumption

Rishabh/Tata Motor Genset have the lowest fuel consumption as more available power of the engine allows optimal fuel flow & there by the generator runs smoothly & efficiently.

Serviceability

Our technicians have already been trained and are taking care of these engines and technology from last 3 years. You can be assured that your DG set service shall be in most experienced and capable hands with a network of 1800 service dealer accross India

Highest Block Loading

Highest block loading capacity (70%-90%) across range which is best in Industry.

AMC/CMC

Annual maintenance contract through our responsiv service network. Extended warranty Option available.

TECHNICAL SPECIFICATION

DG SETDG Set ModelRT+20RT+25RT+30RT+35RT+40RT+45RT+50RT+58RT+75RT+82RT+100RT+125RT+140RT+160*
Rating (kVA)2025303540455058.57582.5100125140160
Rating (kW)1620242832364046.8606680100112128
ACOUSTIC ENCLOSUREStarting System12V DC
Battery (Ah)90100
Canopy Size : LxBxH (mm)2600 X 1100 X 16002750 X 1100 X 17603300 X 1250 X 1950
Fuel Tank Capacity (Ltrs)100160240
Weight (Kg)950950105011501200125013751475186018602205220522752345
Thickness of Foam In doors405075
Density of Foam for Sound Insulation323850
Steel Thikness in AcousticTATA Steel |Base 3 mm | Rest of Canopy 1.6 mm
ENGINEEngine Model Family497SP497SPTC89497TC57697TC60697TC60
Engine Make TATA
Engine Power (Bhp)4343437474747474102102158158158158
Rated Speed (RPM)1500
No. of Cylinders46
Bore (mm)9797979797979797979797979797
Stroke (mm)100100100100100100100100128128128128128128
Total Displacement (CC)296038005700
Lube oil   Sump Capacity (Ltrs)71015
Total Coolant Capacity (Ltrs)131625
Oil Change Period500 Hrs Or 6 Months Which Ever Is Earlier
Compression Ratio17.5 : 01
AspirationTCIC & CRDI
Cooling SystemWater/Coolant
FIPMICO Bosch - CRDI
Governing TypeElectronic-G3
DEF                                                         Tank Capacity (Ltr)N/ATATA Motors Premix as per ISO 22241                                                                (25Ltr.)
Emission NormsCPCB-IV+ Compliant
ALTERNATORAlternator Make Meccalte | Stamford
Type (PF)Brushless, H Class Insulation | (0.8)
Frequency (Hz)50
Voltage (V)230/415
Amperes (A) @
415 V
2734414855626969104114139173195223
CONTROLLERController MakeDeepsea
TypeMicroprocesser Based, LCD  fault display screen, Auto start / Stop Features
Remote Monitoring SystemOptionalAvailable
Display ParametersRun Time Hours, Current, Voltage, Engine RPM, Frequency, Engine Temperature & Oil Pressure,                                                                                                                                        Battery V, Service Due Hours, kVA, PF, KW, KWH, Fuel and DEF level Visual
Modes Available Automatic/ Manual
DG ProtectionsUnder/Over Frequency ,Current Unbalance, Over Speed, Overload, RWL,  LLOP, HWT, LFL, Charging
Alternator/V-belt, Emergency-Off, Service Due Fail To Start Fail To Stop
MCB/MCCBSCHNEIDER / L&T



Acoustic Enclosures :-

Our Silent Gensets use Indias No 1 Steel in our gensets by TATA STEEL

  1. Aesthetically designed  weather and sound resistant enclosure.
  2. Designed for Ease of Access and Serviceability.
  3. Acoustic Enclosures come with UV resistant powder coating which can withstand extreme weather com ditions.
  4. Smallest Footprint giving an edge to optimize your valuable space.
  5. Ease of handling with appropriately located Center/
  6. Single lifting arrangement & Forklift Slots for easy shifting.
  7. Inbuilt Silencer up-to 75kVA  above 75kVA Silencer Comes with Bird Protection.
  8. Practically located fuel filling point.
  9. Rishabh Silent Gensets Come with Indias No.1 Sheela Foam (makers of Sleepwell Mattress).
  10. Certified for stringent and latest MOEF / CPCB IV+ norms of less than 75 dB at 1 meter.
  11. Super Silent models for special applications which have 68-70 db sound level at 1 meter in open field conditions
  12. The Foam used in enclosure is fire retardant.

GENSET CONTROLLER/SWITCHGEAR EQUIPMENT :-

Our Generators come with World class controllers from Deep sea

  1.  Fault recognition by name unlike other controllers which display fault code.
  2. Microprocessor based.
  3. Brilliant & bigger best in class LCD screen.
  4. Lowest battery consumption in ideal condition.
  5. Manual Breaker operation with tactile buttons on front panel.
  6.  This controller comes with IP 65 protection against water seepage.
  7.  World class Dgset monitoring & protection features.
  8.  Available with Automatic & Manual Functions on demand,
  9.  Rishabh Generators come with World No. 1 Switch gear from Schneider / L&T
Tata Genset CPCB IV +

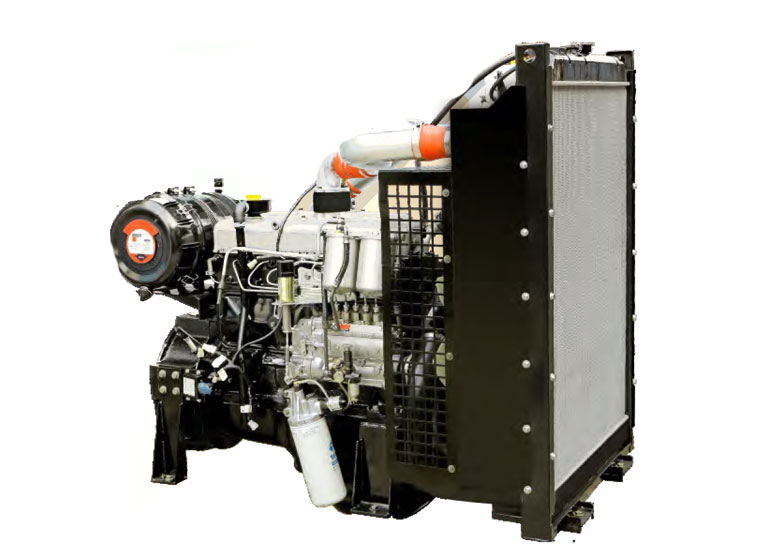

India No. 1 TATA Engine :-

What makes ΤΛΤΑ diesel engine India no.1 selling diesel engine

  1. Proven Technology: The technology used in our generators has been implemented in our BS 6 commercial vehicles for the last 3 years. These vehicles have been reliably carrying loads of cargo on Indian roads, including overloads. This is why we say that our technology is seasoned and matured, unlike the competition engines which are newly developed for CPCB 4 application.
  2. Maximum Power: The engines have the highest Break Horse Power (BHP) and Highest Cubic Capacity (CC) in its class.
  3. Environment Friendly: The engines confirm to CPCB IV+ India norms having lowest emissions.
  4. Global Engines of India: TATA engines are truly world class & are used by DGSET Manufacturers Globally.
  5. Availability of Spares: Since we are already using these engines in commercial vehicles, our part availability is fully on track. For others, it will take many years to reach this level of readiness.


Tata Genset CPCB IV +

AC Generator | Alternator :-

Salient Features of Alternators

  1. Best in Class Efficiency.
  2. 2/3 pitch winding alternator for better handling of harmonic and un-balanced load.
  3. Brushless Type  and Class H insulation.
  4. Self-excited, self-reg- ulated Single Bearing, Brushless & Contin- uous Duty.
  5. Protection Degree IP21/1P23.
  6. Inbuit DVR in most alternators
Tata Genset CPCB IV +
